Welcome to WENZHOU KHAN ELECTRONIC CO.,LTD.

※ SPECIFICATION

Contact Rating50mA   @ DC12V
Dielectric StrengthAC250V for 1 Minute
Contact Resistance100 mΩ Max.
Insulation   Resistance100MΩ Min.
Life Expectancy100,000 cycles cycles
Travel0.25mm ± 0.1mm


TSR06311

Swipe left and right more

※ TSR06311

Funtion: Momentary action

Contact Arrangement: SPST, Normally Open

Termination: SMD version

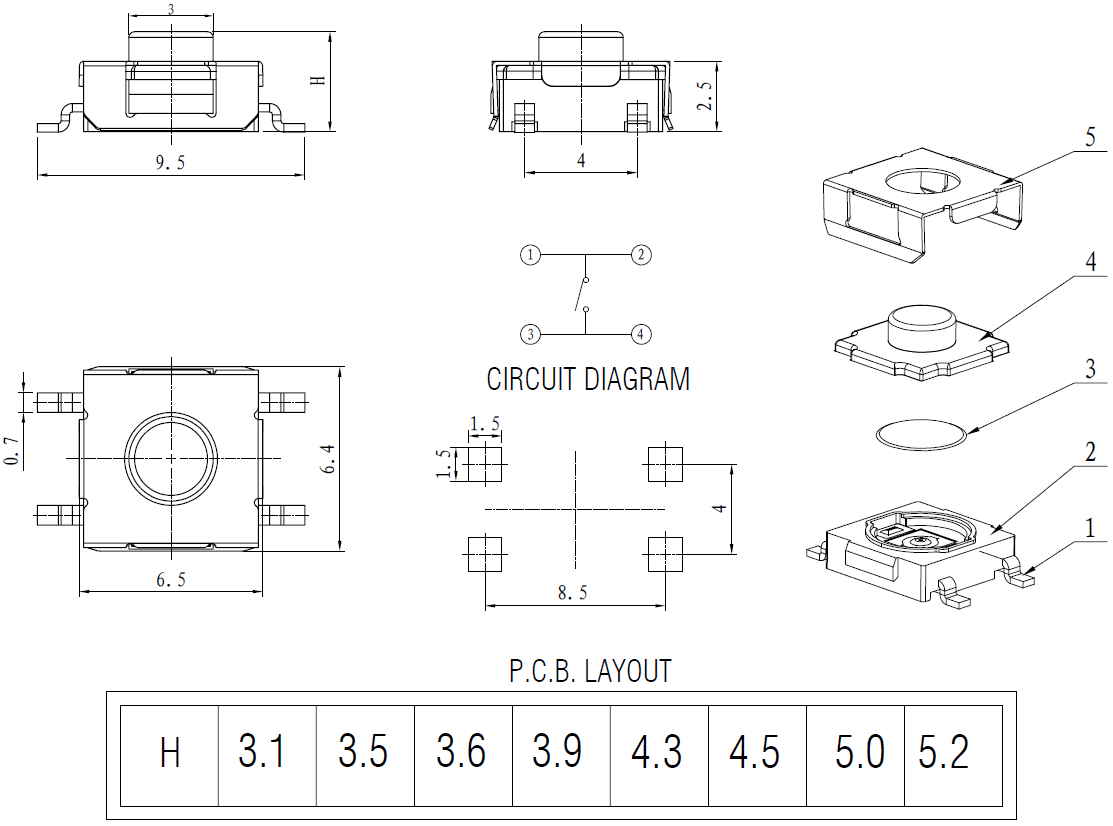

※ DIAGRAM




※ SPECIFICATION

Contact Rating50mA   @ DC12V
Dielectric StrengthAC250V for 1 Minute
Contact Resistance100 mΩ Max.
Insulation   Resistance100MΩ Min.
Life Expectancy100,000 cycles cycles
Travel0.25mm ± 0.1mm
